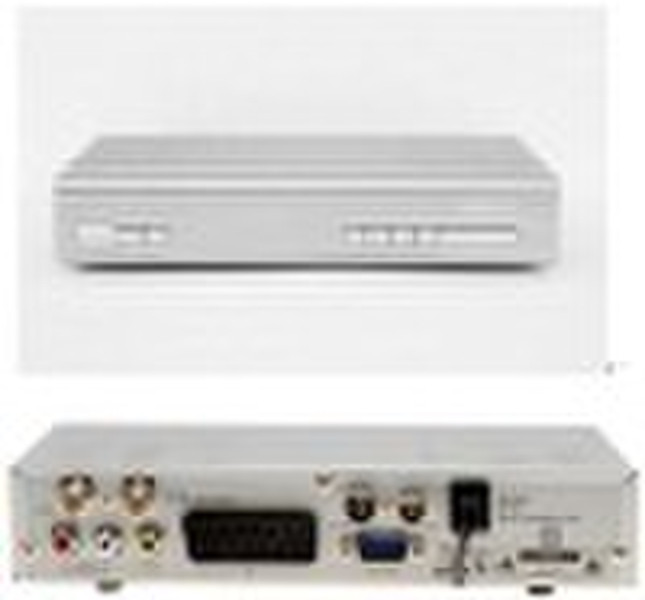

opticum 4100C

FEATURES 1.Fully compliant to MPEG-2 / DVB standard 2.4, 000 programmable channels 3.950 2150 MHz IF range 4.MCPC/SCPC, C/KU reception 5.Fully MPEG 2/DVB compliant 6.1 LNB input, IF Ioop through for 2nd receiver 7.Variable input symbol rate 2 40Msps 8.Auto satellite program searching 9.Manual PID scan function 10.Picture-In-Graphics function 11.Subtitle function 12.Electronic Program Guide 14.Favorite channel selection/Parental lock 15.Auto NTSC/PAL switching 16.Teletext supported 17.RS 232 downloading SPECIFICATION General data: LED display: 4 Digits Input Voltage Rang e: 100 250V AC 50/60 Hz Power consumption: max 20 W Operating Temperature: +5?C 45 ? C Size (WxDxH) in mm: 260x185x57 or 220x153x49(Optional) Net-Weight: 1,5 kg Tuner: Input Frequency Range: 950 2150 MHz RF Input Level:-25 -65 dBm LNB Power: 13/18 V DC (+(- 5%) Max. 500 mA, Video Decoder: Profile level: MPEG-2 MP@ML Video Resolution: 720 x 576 (PAL), 720x 480 (NTSC) Aspect Ratio: 4:3, 16:9(Letter Box) Demodulation: Modulation: QPSK(SCPC,MCPC capable) Input Symbol Rate: 2 45 Ms/s System and Memory: Processor: 200MIPS based CPU Flash Memory: 16 Mbits SDRAM: 64 Mbits Audio Decoder: MPEG/ layer I & II, Sampling rate: 32,44.1 & 48KHz Audio modes: Mono/Dual Mono/Joint Stereo/Stereo Connectors: SAT IN SAT OUT 1 SCART TV (RGB, CVBS) RCA/Composite Video(CVBS)/Audio Left & Audio Right RS232:9 way D RS232 DCE serial port
